Terminal Block Board for Raspberry Pi Pico

This terminal block expansion board for the Raspberry Pi Pico is just right for makers who love using terminal blocks for wiring up their projects!

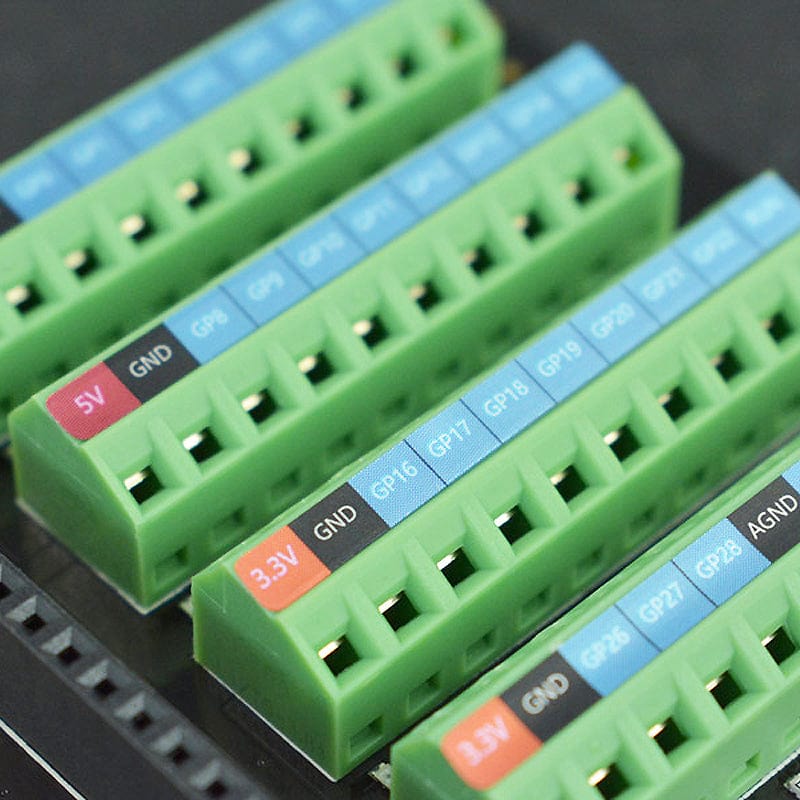

The board has all pins of the Pico broken out into terminal blocks and provides users with additional GDI, 5V output, and 7-24 power input. Each port is labelled with clear silkscreens.

All terminal blocks (except GND) have LED indicators for status indicating, which can be turned off using the onboard switch when not required.

Note: Raspberry Pi Pico not included. You’ll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy the Pico H with pre-soldered headers.

Features

• Terminal blocks, make connections more stable and reliable
• All pins of the main board are broken out
• External Voltage Input: 7-24V
• Clear colour silkscreens
• GDI for connecting the display
• Terminal block status indicator
• Terminal block status indicator switch

Specifications

• External Voltage Input: 7~24V
• Screen Interface: GDI
• GPIO x27
• GND x5
• 5V Port x2
• 3.3V Port x2
• Port LED Indicator x35
• Port LED Indicator Color: blue
• Default ON Port Indicator: 3.3V, 5V, VSYS, VBUS, VREF
• Dimension (Without Package): 61mm x 93.5mm

Resources

• Product wiki
• Schematics
• 3D File
• CAD File
• Dimensions
• SchDoc

Package Contents

• 1x Terminal Block Board for Raspberry Pi Pico

Raspberry Pi Pico not included
